Reverse Engineering of a BLE Bulb

I few months ago, I participated in the crowdfunding of a cheap Bluetooth Low Energy LED Bulb. Raised money was pitiful but project went ahead under a new name and I received my bulb anyway.

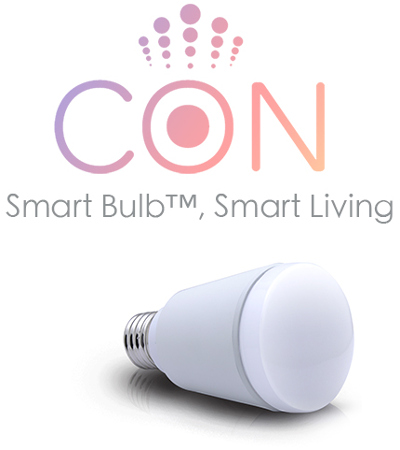

Concordia Bulb

If you ask me, the name "Con Bulb" sounds odd both in English or in French (not for the same reasons) but this is not the point here so let's move on!

The website provides a link to apps (iOS and Android) but nothing else. These apps sort of work but since there is zero documentation, it's hard to guess what some functions/buttons are. And obviously, no info about the protocol used.

After a bit of research, I found that the light was basically a TINT B730 by Shenzhen LEDE Technology. And that the API seems totally proprietary.

Android to the Rescue

New versions of Android (>=4.4) have a nice feature called Bluetooth HCI snoop log. First, you need to activate the Developer Options by taping 7 times on Build number in your settings.

Then by activating the option "Bluetooth HCI snoop log", all the Bluetooth traffic will be recorded in a file (in /storage/emulated/0/Android/data/btsnoop_hci.log on my phone running Lollipop).

This file can then be read with Wireshark on a computer.

Decoding the data

All commands sent to the bulb follow a similar pattern:

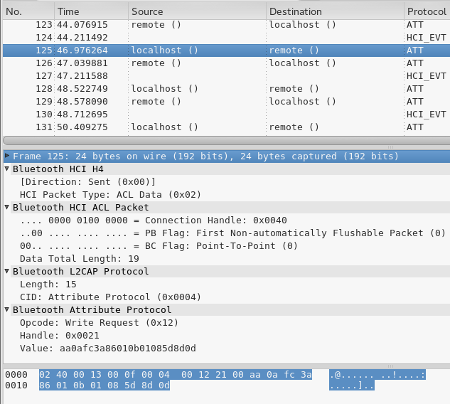

Example of BLE command with wireshark

For example here:


By matching the actions on the app to the BLE commands, I came up with a (incomplete but sufficient) list of commands.



The header seems totally static and always



The trailer seems totally static and always







White Reset


White Mode - Brightness


Where VV = Brightness between 02 and 0b

White Mode - Colour Temperature


Where VV = Colour between 02 and 0b

RGB Reset




Where RR, GG, BB are between 00 and FF

Preset/Memory mode


Where MM is a Preset mode:

Night Mode (Switches off after 20 minutes)


About RD & CS bytes

For example, for preset #1 (Red) with a random value of 0x88:

CS = (0B+01+01+88 + 1C) & FF = B1

And for White Reset with a random value of 0x05:

CS = (0D+06+02+80+80+80+80+80+05 + 1C) & FF = 2B6 & FF = B6

Testing from the command line

Using a Bluetooth 4.0 USB Dongle, it is now possible to control the light directly from the computer...

hciconfig hci0 up

hcitool lescan should return something like:

D0:39:72:BE:12:34 (unknown)
D0:39:72:BE:12:34 B730
D0:39:72:BE:12:34 (unknown)
D0:39:72:BE:12:34 B730

hcitool lecc D0:39:72:BE:12:34

gatttool -b D0:39:72:BE:12:34 --char-write-req -a 0x0021 -n aa0afc3a86010a010100280d

Python version

Using bluepy and a bit of Python, it is possible to control the light easily. Beware, the protocol is only partially implemented and communication is only unidirectional (computer to bulb) without waiting for any feedback. It might be a very bad idea to send commands at random (eg white temperature while in RGB mode) and/or too quickly.

Software can be found on github:


Other models of bulbs

It seems that reverse engineering of bulb is a popular sport these days. I found the following instruction for other models of lights:


This page is for informational purposes only... You assume total responsibility and use at your own risk!

    New Bluetooth Low Energy modules

    After the upgrade disaster of the "frimware" of a HM-10, I decided to retry with 2 new modules, this time from a european based reseller.

    And since I also supported the airboard project, I decided to buy them in XBee format (without really knowing it, see below).

    Both are based on TI chips (CC2540 for the first one et CC2541 for the second). One day I'll have to have a serious look at Nordic Semiconductor's offering (specially their new nRF51822 SoC) but the boards based on nRF8001 were out of stock anyway...

    Bluetooth BLE Link Bee

    The first module is a Bluetooth BLE Link Bee from DFRobot.

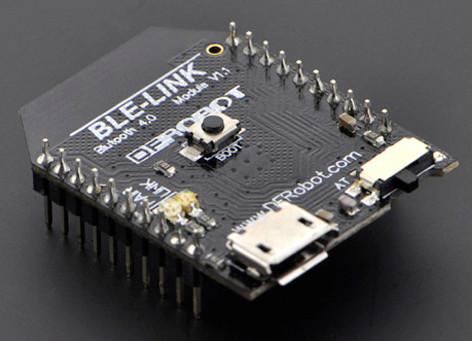

    BLE-LINK Bee

    This module is the one officialy supported by the airboard. It comes with a very handy micro-usb port and integrated voltage regulator & leds. The "AT" physical switch is no longer in use with recent firmware.

    I haven't explored much but, so far, I am happily surprised.

    BLE Bee - Based on HM-11 Module

    The second one is a BLE Bee - Based on HM-11 Module from Seeedstudio.

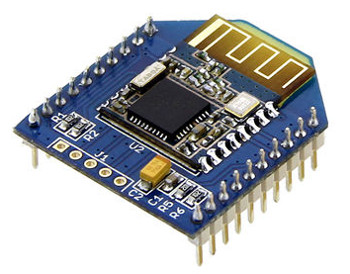

    BLE Bee - HM-11

    This is basically a HM-11 module with a couple of capacitors in the XBee form factor. Nothing more! Not even a "system led".

    Price (even directly in China) is basically 4 times the one of the HM-11 alone and twice the one of the module above (but with fewer bells and whistles). This sounds odd but at least the embedded HM-11 seems genuine and the upgrade to the very latest firmware went without a hitch!!

    But before I reached this stage, I discovered what the "Xbee form factor" was:

    As a frenchman, I am a strong Metric System Advocate as it is better on all counts. But having a module using a 2mm (instead of standard 2.54mm) spacing was annoying (that said the HM-1x modules themselves use 1.5mm) as I had to create a makeshift pin adapter to be able to connect to the module. At least, I'll know for next time!


    Despite following all the instructions carefully, I was still unable to create a iBeacon with these modules. Turned out that there is a bug with iOS 7.1.1 and iBeacons are not always detected. So maybe that was the signal to upgrade to iOS 8.

    Using iOS 8.1.3, I was able to see the beacons... but with the HM-11 module, I had to more issues: It seems very unstable on a 3V battery (maybe a booster and/or a proper sleeping management is required) and I wasn't able to set-up the calibration value as AT+MEAS doesn't seem to work. Oh well...

    Bluetooth Low Energy : HM-.... dead!

    Following my adventures with the HM-12 unconventional module, I carried my experimentations with the HM-10 module this time.

    If the majority of the functions were working, some of them like the iBeacon related ones were giving me... nothing!


    So I decided to re-flash the "frimware" (as it is called on the website), carefully following instructions up to a great Windows telling me:

    Download completed successfully


    So far, so good... but the, the module started giving me only continous


    One power cycle later, it got even worse because I know have only

    www.jnhuama.cwww.jnhuama.cwww.jnhuama.cwww.jnhuama.c (note the missing final "n"!)

    I used the correct file ("CC2540" chip and HM-10 firmware) and the upload wasn't interrupted... So what went wrong? Not a clue... I only guess that I managed to brick my $6.87 module. This time I am really starting to wonder if these HM modules were really genuine!


    New (different) modules are on their way. TBC...

    Bluetooth Low Energy with module HM-12

    While I am still waiting to receive a few Bluetooth Low Energy (aka Bluetooth 4.x) tags bought on Kickstarter and Indiegogo Crowfunding platforms, I recently ordered a HM-10 and a HM-12 modules. This modules being tiny, I went for the HMSensor version of the HM-12 thinking it would be easier to use straightaway.


    Having this one to work turned into A Quest with a lot of wasted time... Since it is relatively badly documented, here is some information which, I hope, could be helpful to someone else. As always, it's a lot easier when one has the right documentation!

    Supplying power

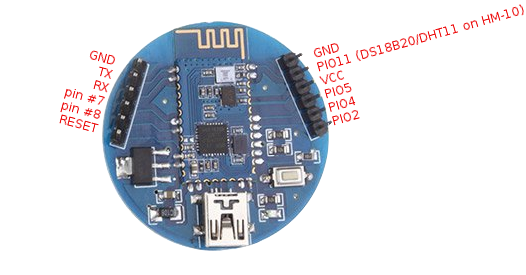

    This part is simple and painless. The HMSensor has:

    • A CR2032 battery holder
    • A Mini-USB socket with a 5V->3.3V regulator
    • A Vcc pin which can be used to feed the circuit

    When the circuit is powered on, the blue LED starts to blink...

    Serial connection

    Thanks to the 2 TX & RX pins, using the UART/Serial connection should be very easy. The standard 9600,N,8,1 doesn't give anything, nor speeds just above (19200 or 38400 bauds). Usually when the speed is not totally correct, there is at least some garbled characters. In this case... Nothing, nada.

    More about this later...

    The iBeacon module from the same manufacturer mentions that AT commands can't be sent through the UART but have to be fed through a Bluetooth connection. Who knows, maybe this module was having the same behaviour?

    Connection over BLE

    It is worth noting here that I own an iPad 4th generation and a relatively old Android 4.1 mobile (hence without BLE).

    The mobile being a no go with BLE, I tried a dozen of iOS apps to connect the iPad to the HM-12 module. The only one which seems usable for this purpose was Lightblue.

    Yet, if I could see the module and establish a connection (blue light goes from blinking to steady), I was then stuck with one obscure service UUID: FFE0 and basta!

    Still nothing interesting and moreover still unable to make anything of it.

    Connection with standard bluetooth

    The module being dual mode (i.e. Bluetooth 2.x & 4.x), I should have been able to see it under the settings panel but NO. Until I remembered that Apple is very picky about bluetooth connections and that only a few selected components are allowed to connect...

    So, it was time to turn to the mobile which doesn't talk "New bluetooth" but is fluent in the "Old one": This time, I was able to see the HM-12 (by the way, it is by default advertised as "HMSoft" in both modes). After guessing the pin was "1234", connection was established promptly.

    There are hundred of terminal/serial apps but again, nothing seemed to happen after the connection...

    What am I doing wrong?

    I scoured the web low and high, always going back to the same datasheets wh ere the HM-12 module was mentioned (in passing), pictured and where the HMSensor was described. But nothing to crack the connection challenge...

    Even a documentation from a certain Tinysine HM-12 wasn't helpful as I still wasn't able to access any of the AT commands.

    The Chinese company behind the HM modules has released 2 versions:

    • The HM-12 which is of the "standard" size of HC/HM bluetooth modules
    • The HM-13 which is a bit smaller

    Both seems strictly identical otherwise and as I was about to give up, I searched for HM-13 instead of HM-12.


    A wiki page from Seeed-Studio gave me two clues as their "Grove - BLE (dual model) v1.0" breakout board was almost identical to my uncooperative sample!

    There is light at the end of the tunnel

    First, one essential indication: Baud: 115200, N, 8, 1

    No wonder I could not communicate via the serial port... the set speed (115200 bauds) being way higher than the usual (and described in other datasheets) ones (i.e. 9600 bauds).

    Another thing to know is that by default:

    • While unconnected, the HM modules do not send any data on the serial port unless replying to a command (no greetings whatsoever). This behaviour can be modified but it explains why no data could be observed over the serial port.
    • Any unrecognised AT command won't produce any output (not even an error).
    • Commands have be be sent in one go, typing "A" then "T" won't work. The easiest way I found to overcome this is to prepare the command in a separate text editor then to send it (for example using minicom) via copy and paste.

    Actually the datasheet for these module can be found on the manufacturer's website but is NOT search engine friendly as it is hidden in a zip file called "Bluetooth Dual".

    Obviously, everything is easier with the right datasheet...

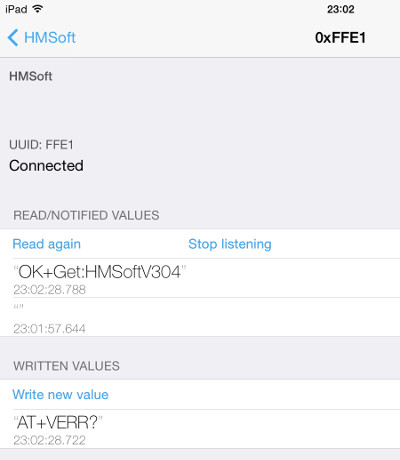

    The second useful thing on the Seeed-Studio wiki page is the way to use the lightblue App as a pseudo terminal emulator. Very handy!


    Still one mystery...

    The HM-10 firmware seems to come in 2 flavours: HMSoft and HMSensor. No trace of a HMSensor with HM-12 on the manufacturer site so I really wonder what is going on. Moreover, it doesn't really make sense to have a Old fashion bluetooth powered by a tiny lithium battery which would not last longer than a day!

    I removed the HM-12 module (and damaged it in the process) and the HMSensor board bear the mention " HM-10". Fake? Assembly mistake? No idea. In the meantime, I soldered the HM-10 and playing with it right now!
